Diaphragm Pumps
One of JATCO’s newest editions to our product line is the introduction of several diaphragm pump configurations for use on a variety of applications including compressor station assemblies, storm water skids, and BTEX condensers. Our standard diaphragm pump (DP-1) is a 1” anodized aluminum Versamatic pump with Teflon diaphragms. The pumps can be ordered in a multitude of variations depending on the customer’s specifications. One of the applications being implemented is retrofitting existing JATCO tanks in the field with our small diaphragm pump skids.

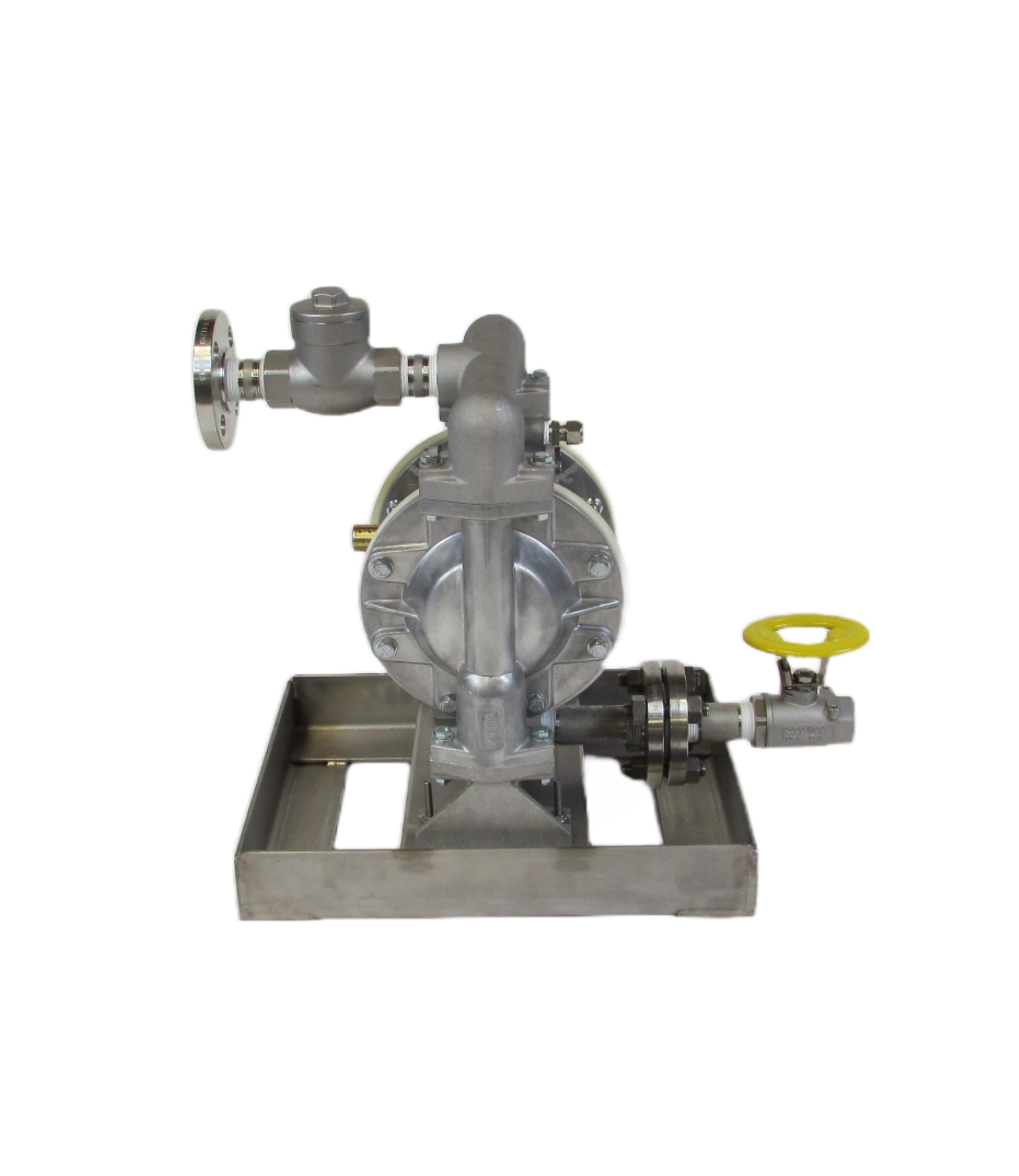

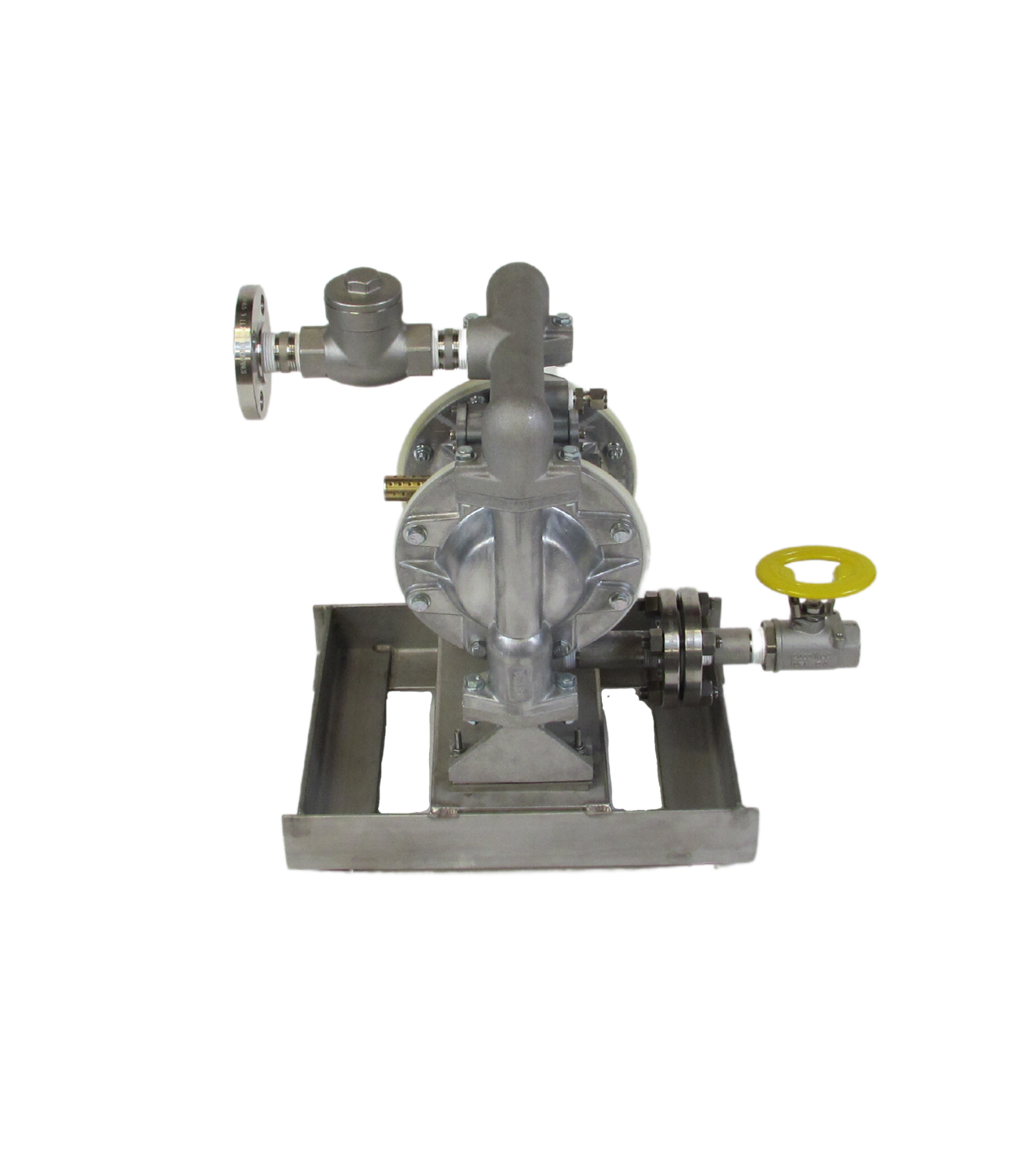

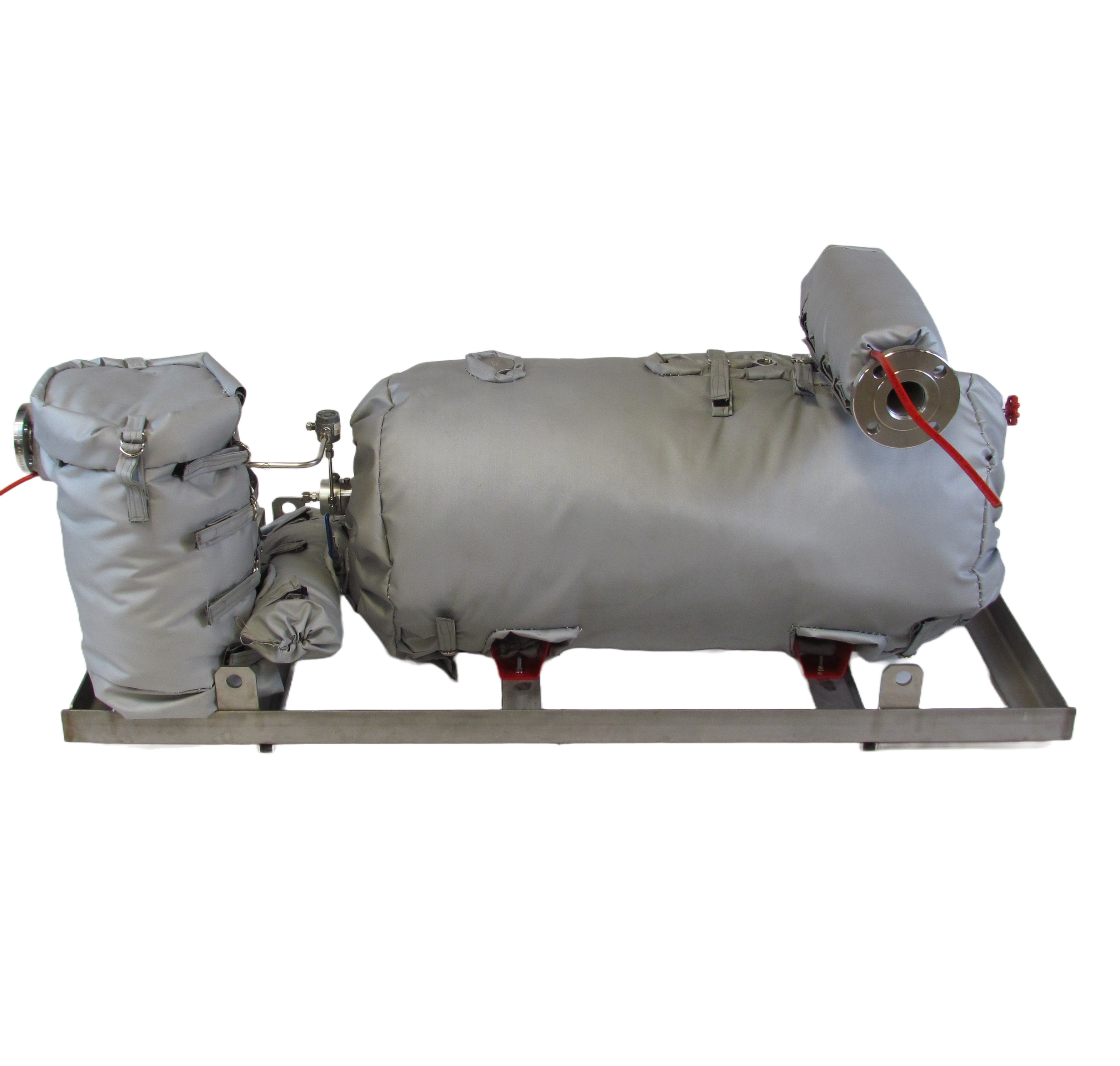

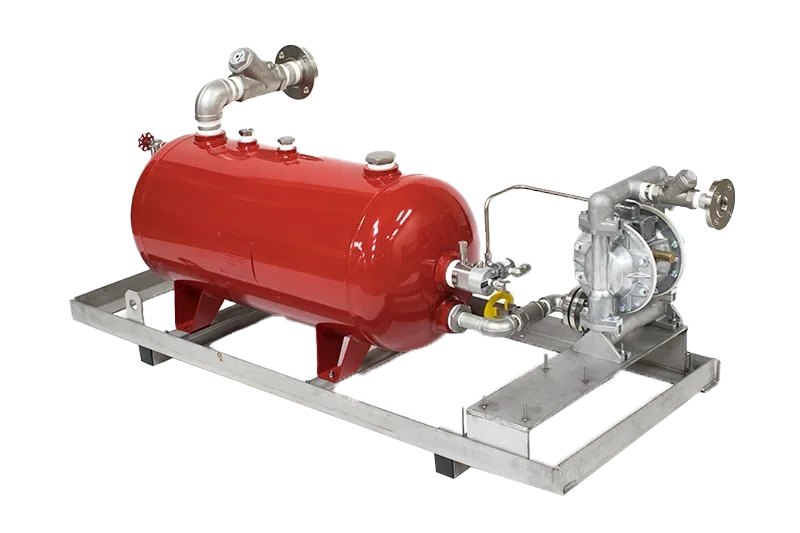

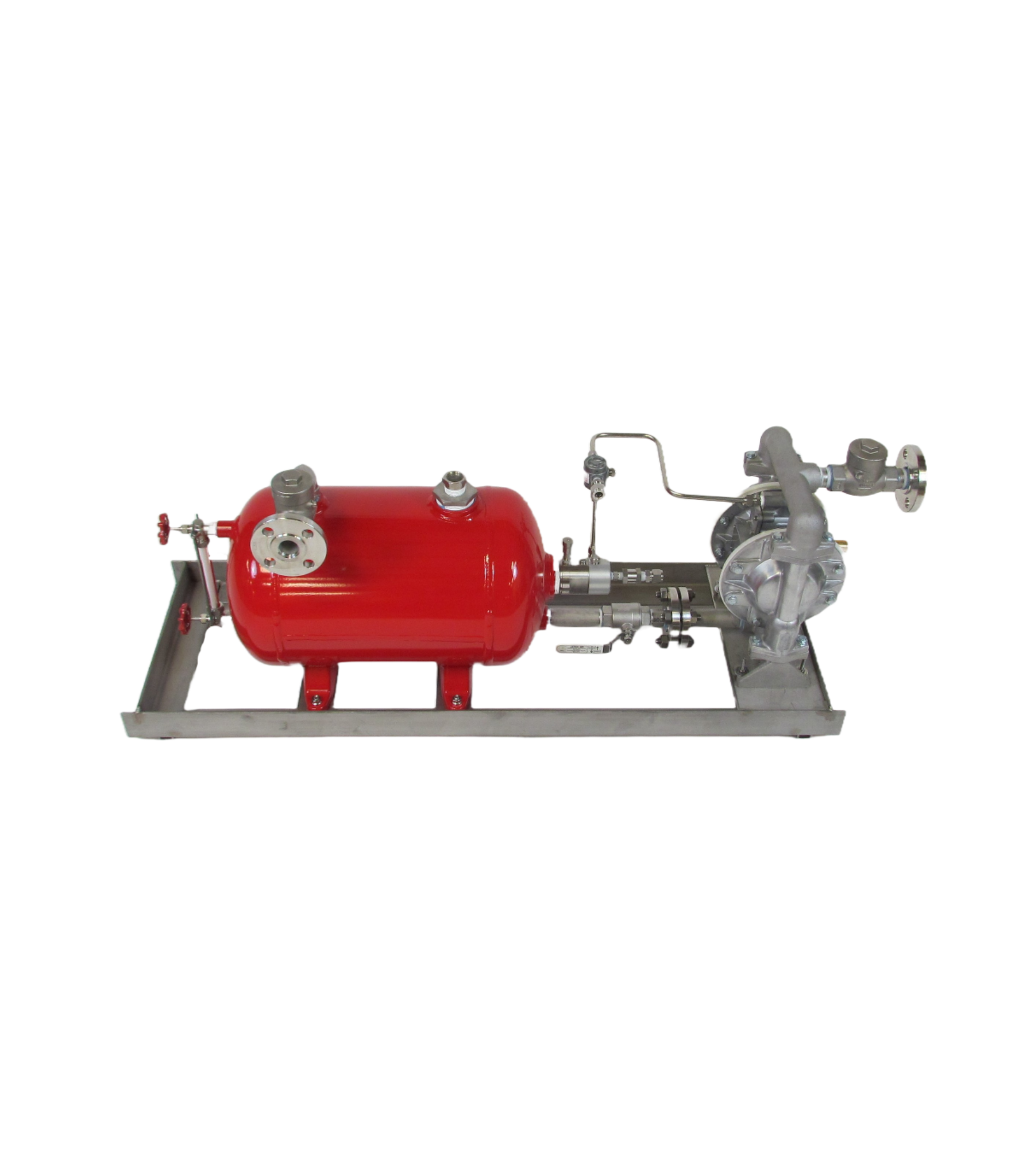

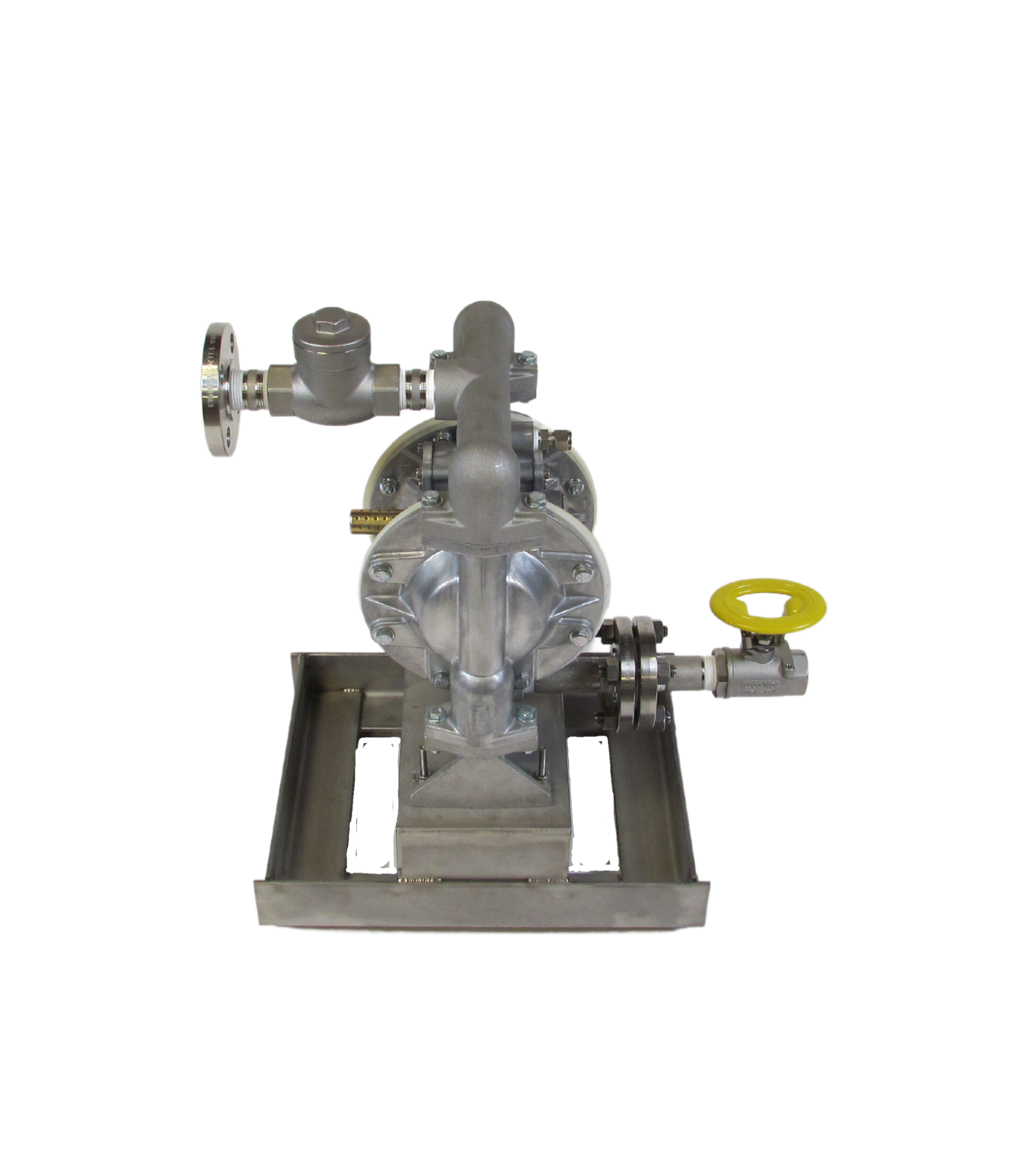

We offer three individual skid configurations based upon which application they are being used for, which includes the DP-1 S (our shortest skid), the DP-1 M (medium height), and the DP-1 T (our tallest skid). The different height variations help to accommodate the various tank configurations. We also offer a tank and diaphragm pump skid assembly that can take the place of the standard setup on BTEX units. One additional benefit to the complete tank and pump skid setup is the ability to add an additional diaphragm pump to the 30-gallon tank skid (J-7000 DP-2). The addition of the second pump is to make service and troubleshooting more user friendly. All these configurations can be purchased with cold weather options that includes jacketed insulation and either 120V or 240V heat tracing.
*Electric Options Available
(Please Call for more details)
Drawings
Manuals
Parts List
Our Diaphragm Pumps
Troubleshooting Videos
Encountering an issue with your JATCO product or simply seeking guidance on its finer details? Don't fret – we've got you covered. On our dedicated Troubleshooting Video Library page, you'll find a curated selection of instructional videos tailored to address common queries and challenges specific to our product range. With clear, easy-to-follow visuals crafted by our technical maestros, this resource is your quick link to solutions and confidence in product usage. Don't stay in the dark; let our expert-led videos light your way to a seamless JATCO experience. Click the link below to explore our Troubleshooting Video Library.

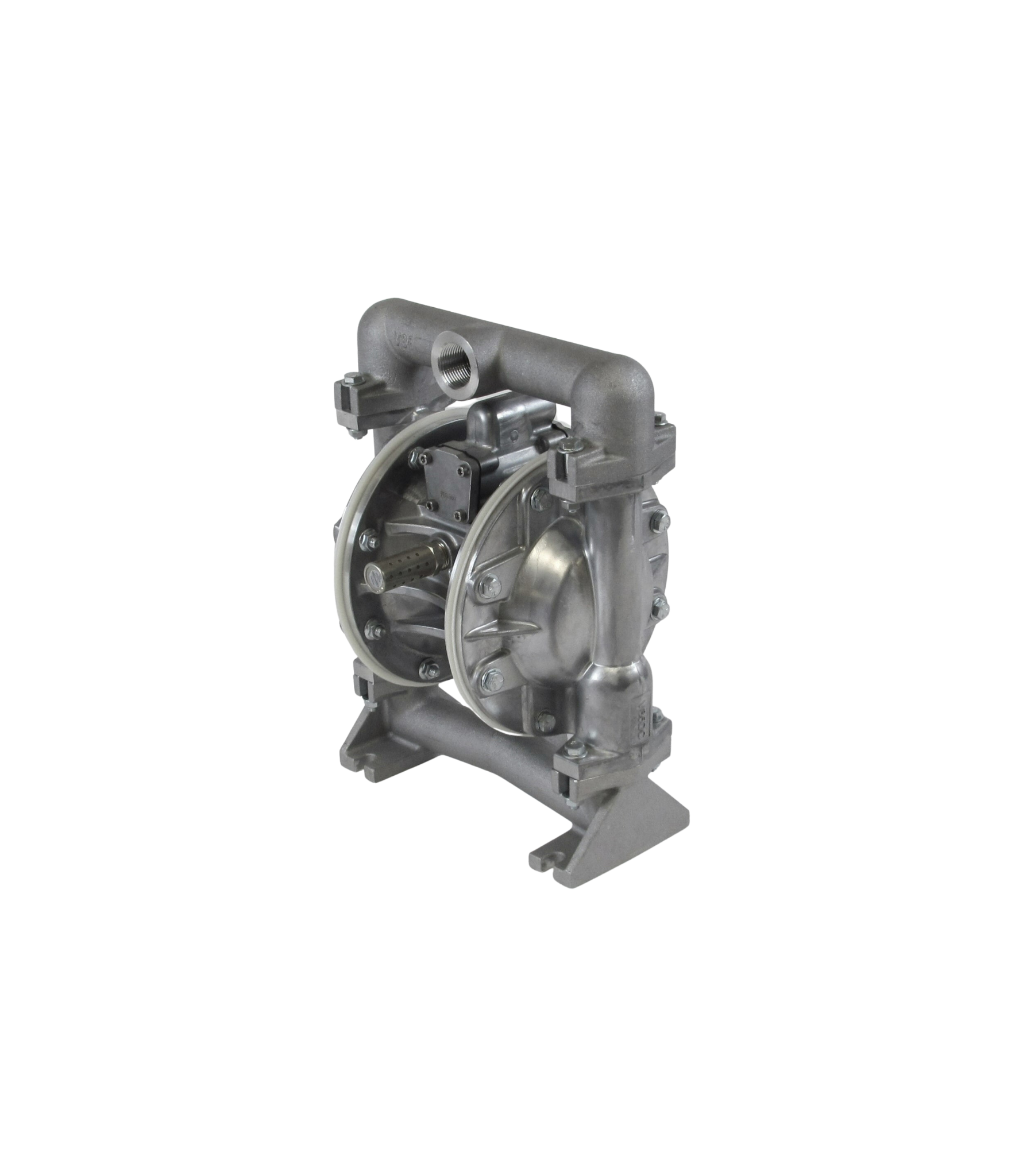

1” Diaphragm Pump
